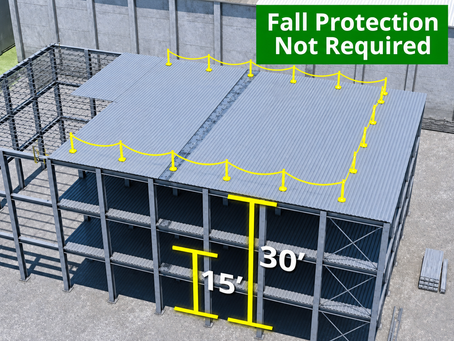

Controlled Deck Zone (CDZ) is a designated safety area used during metal deck installation in steel construction, mainly recognized under OSHA rules. What it Means: A CDZ is an area where workers are allowed to install metal decking without conventional fall protection systems (like guardrails or personal fall arrest systems) under strict conditions. Purpose: It helps workers place and secure decking efficiently while reducing fall risks during initial deck placement. Control

Shear studs are welded through the metal deck to the top flange of a steel beam. The section above the deck is embedded in concrete, allowing it to transfer shear force between the slab and the beam. These studs are utilized in composite construction so that the concrete slab and steel beam function together as a single, stronger structural unit. Typical arrangement: Steel beam at bottom Metal deck placed over beam Stud welded through deck into beam flange Part of stud projec

A deck support angle is a structural steel angle section employed to support metal decking, such as roof or floor decks, at edges, openings, or transitions. Common Uses of Deck Support Angle: Perimeter edge support:- Installed along beams/walls where deck sheets end. Opening reinforcement:- Around openings for stairs, ducts, pipes, skylights, etc. Change in elevation:- Where deck levels step up/down. Deck-to-wall connection:- Provides seat support when deck meets concrete or

A steel angle or bent plate, used around the perimeter of a floor or opening to contain the concrete during placement. The SDI pour stop selection tables are published only up to a 12-inch slab overhang. For overhangs greater than 12 inches, SDI does not provide a standard gauge selection; the edge must be engineered (e.g., heavier gage, added stiffeners, or reduced overhang) based on project loads and support conditions. Pour stop at slab edge

Composite steel floor decking includes a specific steel deck profile that serves as a mold for constructing a structural concrete slab, with the steel deck providing moment reinforcement. This steel deck incorporates embossments, interlocking profile geometry, or other mechanisms for horizontal shear resistance, creating a mechanical bond between the steel deck and concrete. This bond allows the slab to withstand vertical and diaphragm shear loads together. Before achieving c

Deck always spans perpendicular to the supporting members If supports = beams/joists running North–South → Deck spans East–West Deck span

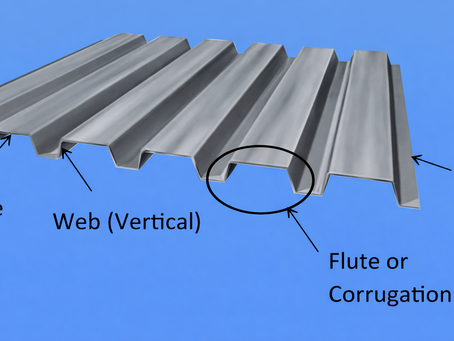

A steel deck is a cold-formed, corrugated steel sheet used as a structural platform in floors or roofs. It’s often paired with concrete (composite deck) or used alone as a roof deck. Its fluted profile increases strength while keeping weight low, making it cost-effective and quick to install. Steel deck nomenclature Steel deck

• Blind bolts are fasteners that can be installed from one side when the back side of the connection is inaccessible. • In contrast to standard bolts, which require a nut on the opposite side, blind bolts secure themselves internally with an expanding mechanism. • They are commonly utilized in Hollow Structural Sections (HSS), cladding, façades, and retrofit projects. Blind bolts

There is a plane between two or more pieces under load where the pieces tend to move parallel from each other, but in opposite directions which is called shear plane. The threads of a bolt may either be included in the shear plane or excluded from the shear plane. Thread included in shear plane Thread excluded in shear plane

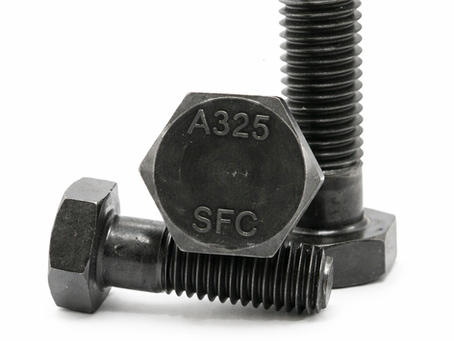

BASED ON BOLT TYPES 1) TYPE-1 :- Constructed from medium carbon steel, boron steel, or alloy steel. Needs a protective coating (such as galvanizing, zinc plating, or painting) Commonly utilized in general structural steel connections (such as buildings and bridges) 2) TYPE-2 :- Discontinued 3) TYPE-3 :- Constructed from weathering steel. A self-protective rust layer develops on the surface, removing the necessity for galvanizing or painting Commonly employed in outdoor stru

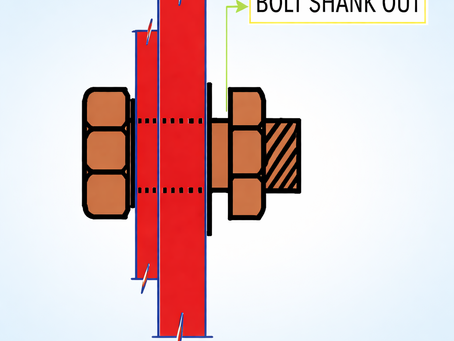

SHANK OUT The bolt shank that remains after the nut is tightened with the bolt and connecting members is referred to as 'bolt shank out.' This occurs only in X-type bolts, where additional washers are used. Bolt shank out STICK OUT It refers to how much the bolt protrudes past the outer surface of the nut. A positive or zero extension is acceptable. However, a negative extension, where the bolt's end is within the nut, is not acceptable.

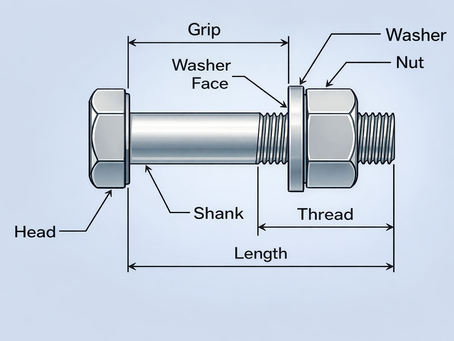

Parts of bolt Parts of bolt

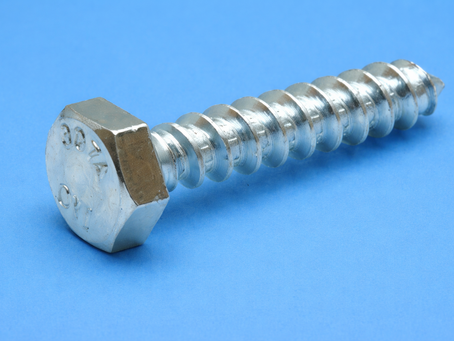

A lag screw, also referred to as a lag bolt, is a fastener with a hexagonal head mainly used for connecting wood to wood or wood to metal. Unlike typical bolts, it does not need a nut and is inserted directly into the material using a wrench or socket. Lag screw/bolt

Adhesive anchors are fastening systems that involve bonding a threaded rod or rebar into concrete or masonry with a chemical adhesive. Eg :- Hilti HIT-HY 200-R V3 Adhesive anchor (Hybrid), Hilti HIT-RE 500 V3 Epoxy anchor (Epoxy), Dewalt AC100+ Gold ® Vinylester Injection Adhesive Anchoring System (Vinylester) TYPES OF ADHESIVE ANCHORS Polyester Adhesive Anchors Vinylester Adhesive Anchors Epoxy Adhesive Anchors Hybrid Adhesive Anchors - Combination of epoxy + other resins A

Self-tapping screw refers to a screw that forms or cuts its own threads within a pre-drilled hole. Eg:- #14 Type A Metal Self-tapping Screw, HH, 304 Stainless | TA-S3-14 Key Features: Requires a pilot hole prior to installation Threads are formed as the screw is inserted Offered in both thread-cutting and thread-forming varieties Suitable for Wood, plastic, thin metal Self drilling screw (TEK screw) is a type of screw that can create its own hole and tap threads in a singl

A countersunk bolt is a fastener specifically designed to be level with or beneath the surface of the material it secures. Its head is conical, enabling it to fit into a countersunk hole and produce a smooth surface. This design is commonly employed in situations where a protruding bolt head could disrupt functionality or appearance, such as in machinery, furniture, or construction projects. Eg:- KH-EZ C Countersunk screw anchor, Kwik Bolt 3 Countersunk wedge anchor etc. Coun

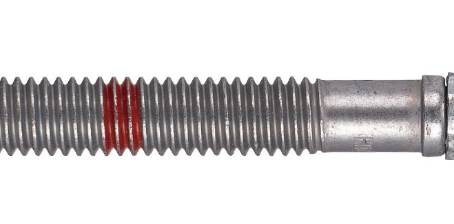

Mechanical Anchors are devices designed to fasten structural or non-structural components to concrete, masonry, or other base materials through mechanical expansion, friction, or interlock, without the use of chemical adhesives. COMMON TYPES OF MECHANICAL ANCHORS EXPANSION ANCHORS Expansion Anchors are mechanical fasteners designed to attach objects to concrete, masonry or brick by expanding within a drilled hole. COMMON TYPES OF EXPANSION ANCHORS WEDGE ANCHORS WORK

A turnbuckle is a mechanical device designed to adjust the tension or length of cables, ropes, or rods. How it works It is composed of three main components: A central body (a metal frame with internal threads) Two threaded ends: One end with right-hand threads One end with left-hand threads When the body is rotated: The ends either move closer together (tightening) Or move farther apart (loosening) Turnbuckle with threaded rods

A clevis is a mechanical connector designed to link two components, permitting some movement, typically rotational. The clevis (fork) is a U-shaped piece featuring holes at the ends of its prongs to accommodate the clevis pin. The clevis pin resembles a bolt but is either partially threaded or unthreaded, with a cross-hole for a split pin. Clevis fastener nomenclature Clevis in rod brace

Rod braces are engineered to counteract lateral forces, such as those from wind or seismic activity, which can lead to sway or deformation. Usually placed diagonally between structural components like columns and beams, rod braces form a triangular configuration, providing exceptional stability due to its geometric strength. Rod braces in a steel structure Rod braces connecting to steel beam
